OM4 10G FIBER PACT CORD 40 MTR

Description

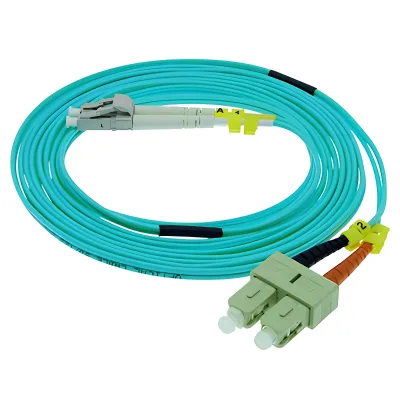

An OM4 10G Fiber Patch Cord 40 Meter is a high-speed multimode fiber optic cable designed for 10 Gigabit Ethernet communication in data centers, enterprise networks, telecom systems, and high-bandwidth optical transmission environments. It uses 50/125µm laser-optimized OM4 multimode fiber to deliver low attenuation, high bandwidth, and reliable optical signal performance over short and medium distances. (fiber-mart.com) This fiber patch cord is available with multiple connector combinations including SC-LC, LC-ST, FC-ST, SC-FC, LC-LC, SC-SC, and ST-ST. It is commonly used for connecting switches, routers, SFP/SFP+ modules, patch panels, ODF systems, servers, and storage devices. The cable usually features an aqua or violet LSZH jacket for easy identification and improved fire safety. (

Specifications

Product Type

OM4 10G Fiber Patch Cord

Fiber Type

OM4 Multimode

Core/Cladding Size

50/125µm

Cable Length

40 Meter

Supported Speed

10Gbps / 40Gbps / 100Gbps

Connector Types

SC / LC / FC / ST

Cable Type

Duplex / Simplex

Jacket Material

LSZH / OFNR / PVC

Cable Color

Aqua / Violet

Operating Wavelength

850nm / 1300nm

Bandwidth

4700 MHz·km

Insertion Loss

≤ 0.3 dB

Return Loss

30 dB
