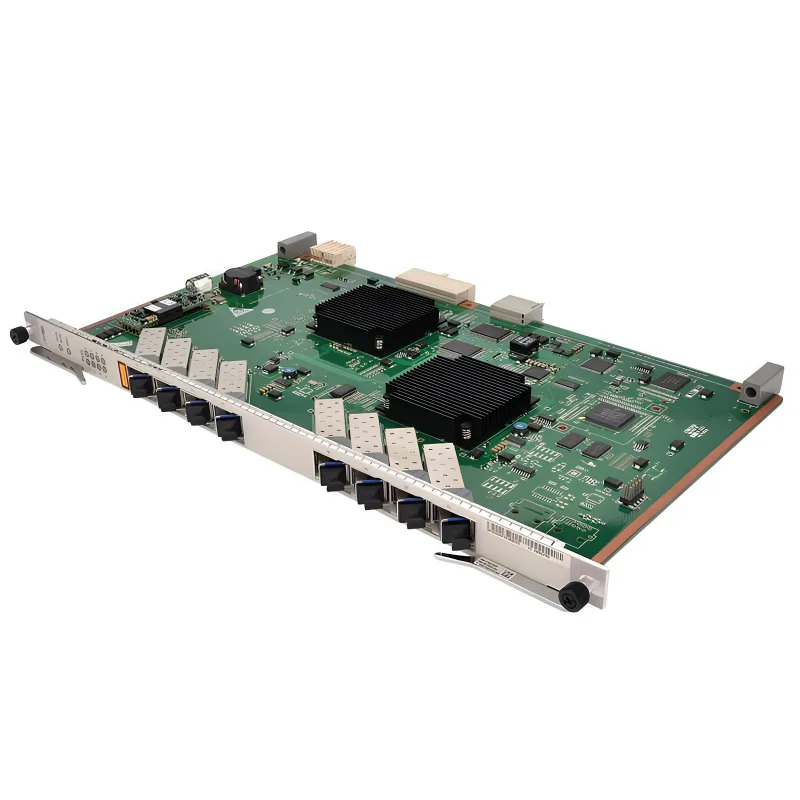

HUAWIE
OLT CARD GPBD C++
In Stock — 6 available
The Huawei GPBD C++ is an 8-Port GPON Service Board used in Huawei OLT systems such as Huawei MA5683T, Huawei MA5680T, and Huawei MA5608T. It provides high-speed GPON fiber access for FTTH, FTTB, enterprise, and ISP networks. The GPBD board supports B+, C+, and C++ optical modules and is designed for stable long-distance fiber transmission with high subscriber capacity.
Cash on Delivery
Pay when the order is delivered.
Genuine Stock
Quality assured by Atlantic Lahore.
Description
The Huawei GPBD C++ is an 8-Port GPON Service Board used in Huawei OLT systems such as Huawei MA5683T, Huawei MA5680T, and Huawei MA5608T. It provides high-speed GPON fiber access for FTTH, FTTB, enterprise, and ISP networks. The GPBD board supports B+, C+, and C++ optical modules and is designed for stable long-distance fiber transmission with high subscriber capacity. Main Features 8 GPON Ports Supports C++ GPON SFP Modules Compatible with Huawei MA5600 Series OLT Supports FTTH / FTTB / FTTC Networks High-density subscriber access Supports 1:128 optical split ratio Long transmission distance up to 20 km SC/PC or SC/UPC optical interface Hot-swappable service board Supports ONU/ONT management and traffic control Suitable for ISP and telecom deployments
Specifications
- Product Model
- GPBD C++
- Board Type
- GPON Service Board
- GPON Ports
- 8 Ports
- Compatible OLT
- MA5683T / MA5680T / MA5608T
- Optical Module
- B+ / C+ / C++
- Transmission Speed
- Downstream 2.488 Gbps
- Upstream Speed
- 1.244 Gbps
- Wavelength
- TX 1490nm / RX 1310nm
