MERCUSYS

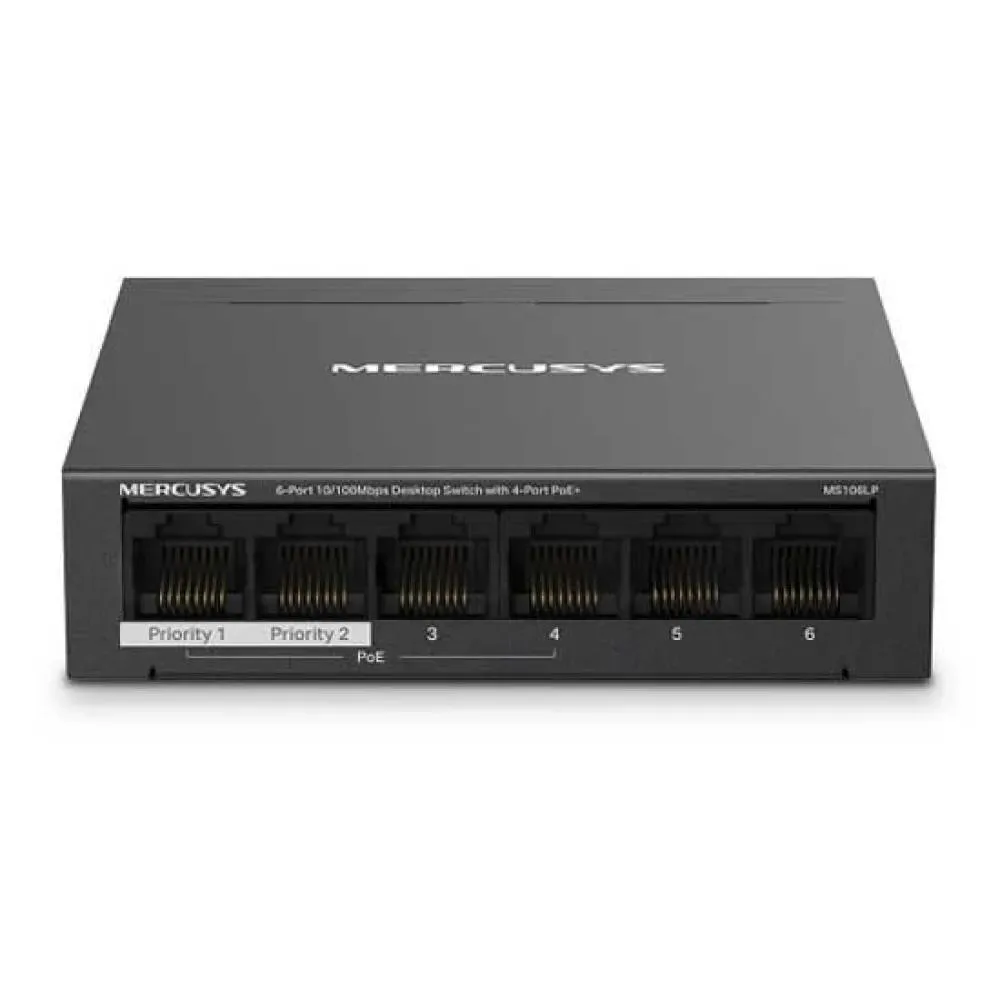

MERCUSYS MS106L 6PORT POE
In Stock — 2 available
The MERCUSYS MS106LP is a reliable and compact PoE network switch designed for CCTV systems, wireless access points, IP phones, and small office networking. It features 6 Fast Ethernet ports, including 4 PoE+ ports that can deliver both data and power through a single Ethernet cable, reducing cable clutter and simplifying installation.
Cash on Delivery
Pay when the order is delivered.
Genuine Stock
Quality assured by Atlantic Lahore.
Description

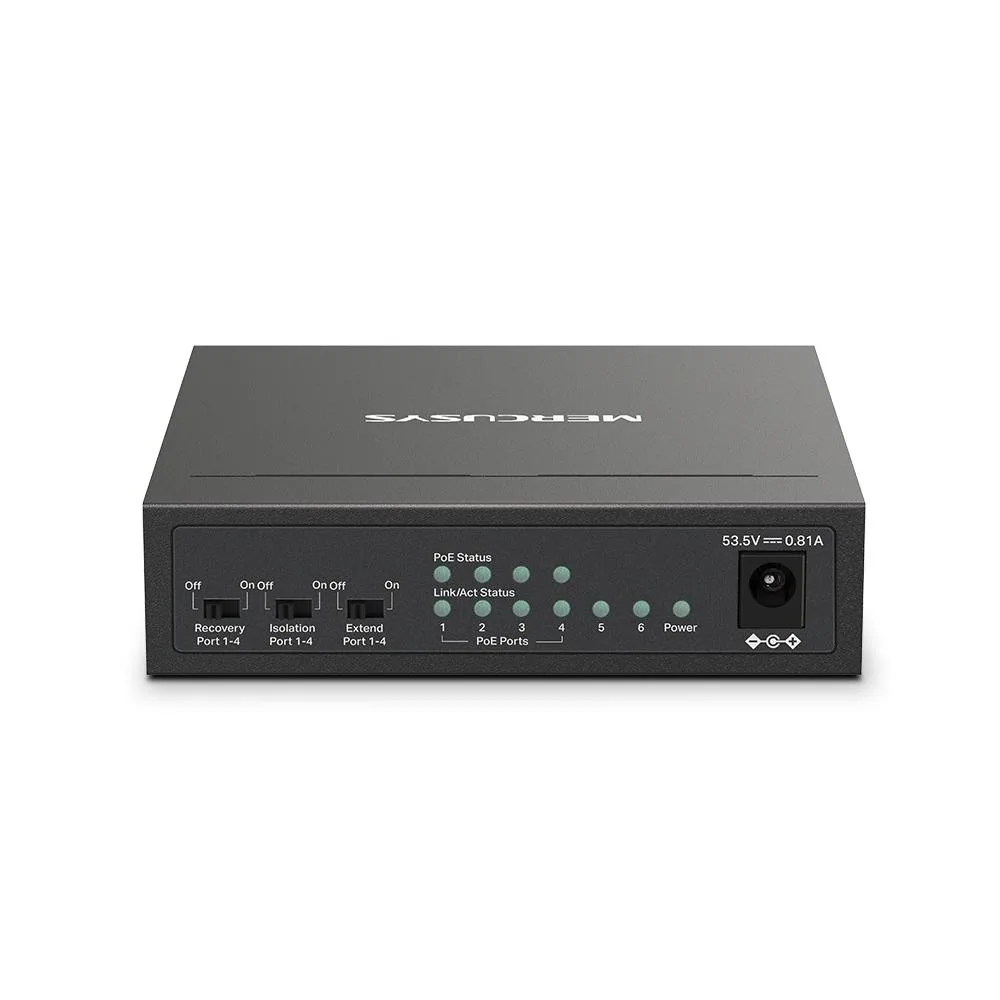

The MERCUSYS MS106LP is a compact Fast Ethernet PoE switch designed for CCTV systems, IP cameras, wireless access points, and small office networking. It comes with 6 RJ45 ports, including 4 PoE+ ports that deliver both power and data through a single Ethernet cable. Key features include: 6× 10/100 Mbps Ethernet ports 4× PoE+ ports supporting IEEE 802.3af/at Up to 30W power output per PoE port Total PoE power budget of 40W Extend Mode supports PoE transmission up to 250 meters Isolation Mode for improved network security and stability PoE Auto Recovery for automatic reboot of unresponsive devices Durable metal casing with fanless silent operation Plug & Play setup with no configuration required It is ideal for surveillance setups, shops, offices, and home networks where multiple PoE devices need stable connectivity and power delivery.
Specifications
- Model
- MERCUSYS MS106LP
- Ports
- 6 × 10/100 Mbps RJ45 Ports
- PoE Ports
- 4 × PoE+ Ports
- Uplink Ports
- 2 × Uplink Ports
- PoE Standard
- IEEE 802.3af/at
- PoE Power per Port
- Up to 30W
- Total PoE Budget
- 40W
- Transmission Distance
- Up to 250m (Extend Mode)
